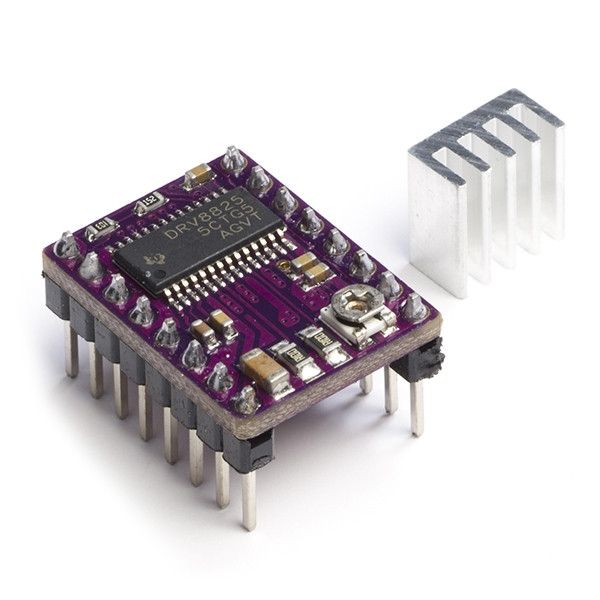

Stepstick DRV8825 Stepper Motor Driver (123-3D version)

Stepstick DRV8825 Stepper Motor Driver (123-3D version)

Zoom in

£5.60 (Incl. 20% VAT)

(£4.67 Excl. 20% VAT)

In stock

Order now, we can ship this on Monday!

Description Specifications

Description

The Stepstick DRV8825 is a powerful stepper motor driver and can deliver no less than 2.5A (if properly cooled). It is compatible with Megatronics and the ideal stepper motor driver for current 3D printers.

The Stepstick DRV8825 has the following features:

Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step and 1/32-step
Protected against too high temperatures
Protected against undervoltage
Protected against too high currents
Supports different decay modes
Simple step control interface

Cooling block included (including adhesive layer).

Additional information: data sheet (PDF)

Specifications

Length:	20.4 mm	Brand:	123-3D
Operating volt logic:	3.5 - 25V	Chip:	DRV8825
Operating volt vmot:	-	Hazard class:	n/a
Width:	15.6 mm	Our item no:	DSD00002
Max current:	2.5 A

DRV8825 Stepstick layout

NB! The stepper drivers can fail by disconnecting the stepper motor under voltage and not using a ceramic screwdriver. Do not use the step drivers on a breadboard. Keep in mind that if you are going to experiment with loose connectors and wires that a driver will sometimes malfunction, it is after all DIY electronics. We recommend using a shield or PCB with headers (a step driver slot). We do not provide any warranty for improper and experimental use.
