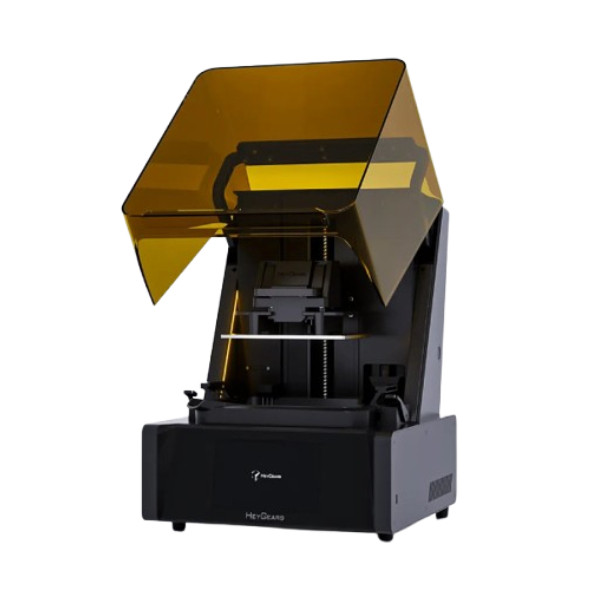

HeyGears UltraCraft Reflex 3D Printer

£1,426.00
£1,188.33 Excl. 20% VAT
14 day delivery
Description Specifications
Description
The HeyGears UltraCraft Reflex is a high-precision MSLA resin printer that combines advanced automation with reliability and ease of use. Ideal for professionals, designers, and detail-oriented makers looking for sharp prints with minimal manual adjustment.

Key Features:
  • XY accuracy of 33 µm and ± 16 µm layer precision
  • Automatic functions: resin level recognition, heated tank, self-leveling
  • Large building volume: 191 × 121 × 220 mm
Specifications
Dimensions: 400 x 420 x 572 mm Printer has USB: yes
Input voltage: 100-240V Max print depth: 19.2 cm
Weight: 25 kg Max print width: 12.1 cm
UV wavelength: 405 nm Max print height: 22 cm
Light source: UV DLP Printer bed levelling: automatic
Heated bed included: yes Filament sensor: no
Camera included: no Max print volume: 5.12
Printing technique: SLA DLP Printer voltage: 24 v/°c
Hazard class: n/a
Compact and professional: high resolution, high reliability
The HeyGears UltraCraft Reflex is designed for users who want to combine professional quality and ease of use in a desktop format. With an XY resolution of 33 µm and Z precision of ±16 µm, this resin printer delivers impressive detail. The advanced light source with a 6K monochrome LCD screen and freeform lens ensures greater than 94% light uniformity, resulting in consistent and sharp prints.

Advanced automation for worry-free printing
Thanks to features like automatic resin replenishment, a heated resin tray, automatic leveling, and AI-driven peel force management, the UltraCraft Reflex takes a lot of work off your hands. The printer recognizes the resin type, automatically replenishes, and dynamically adjusts the peel forces for each layer. This reduces errors and minimizes the need for manual intervention.

Smart technology and sustainable components
The Reflex is equipped with an industrial Z-axis with ball screw drive and a perforated metal build plate for improved adhesion. The release film is resistant to at least 45,000 layers, ensuring low maintenance costs. Additional features such as automatic defect detection, regional support exposure, and a heated resin reservoir ensure an efficient workflow and consistent results, even with longer print runs.

Looking for matching items for the Ultracraft Reflex?

At 123-3D.nl, we offer a wide selection of spare parts, upgrades, and filaments for the Ultracraft Reflex. View all related products.
