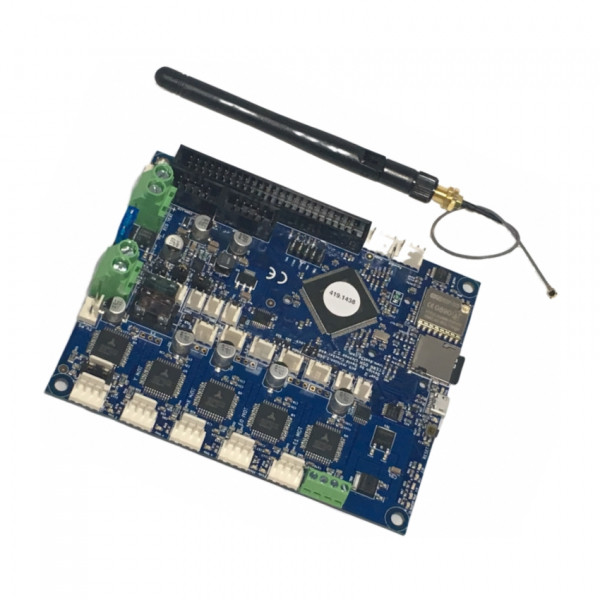

Duet3D Duet 2 Wi-Fi electronic controller card with external antenna

This product is end of life.
Description
This Duet Wi-Fi ethernet module is an advanced electronics board with a powerful 32-bit processor. Ideal for your 3D printer or CNC machine.

This special edition of the Duet Wi-Fi ethernet module is equipped with an external antenna!

The Duet Wi-Fi has the following specifications:
  • 32-bit processor
  • Wi-Fi ethernet module
  • TMC2660 stepper drivers with the possibility of 256 microsteps and 2.8A motor current
  • Fast SD card reader with support for a second SD
  • Dual extrusion on board and the option to connect 5 external step drivers
  • Powerful heated bed connection (18A)
  • Direct connection via Wi-Fi to PC, tablet or smartphone
  • Firmware update possible via web interface
  • All 3D printers are supported (Delta, Core XY, standard cartesian)
  • Connections for PanelDue full colour LCD touchscreen
  • Expandable up to 7 extruders with firmware support for mixing nozzle systems.
  • 3 Thermistor connections
  • 5 endstop inputs
  • LCD connection
  • SD card onboard
  • SD card external
  • 5 Mosfets
The board comes with an SD card, separate molex connectors and an external antenna.

NOTE: The Wi-Fi module of the Duet Wi-Fi is not compatible with 5GHz Wi-Fi networks. The module can only connect to 2.4GHz Wi-Fi networks.

Please note we do not offer support on the installation of this product.
Specifications
Tunnel code: n/a No of thermistors: 3
Length: 128 mm Brand: Duet 3D
Input voltage: 12-24V Hazard class: n/a
Width: 100 mm Our item no: DUE00016
