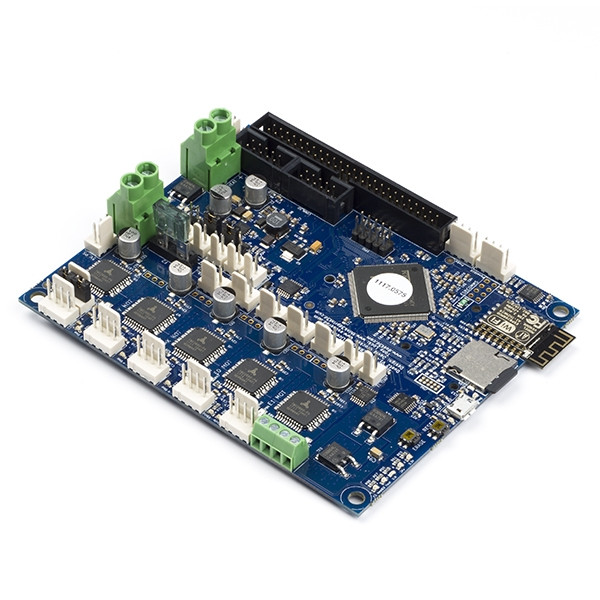

Duet3D | Duet 2 Wi-Fi Electronic controller card v1.04 (original)

£157.50 (sold out) (Incl. 20% VAT)
(£131.25 Excl. 20% VAT)
This product can be ordered 1 time(s).
Description
This Duet Wi-Fi Ethernet module is an advanced electronics board with a powerful 32-bit processor. Ideal for your 3D printer or CNC machine.

The Duet Wi-Fi Ethernet has the following specifications:
  • 32-bit Processor
  • Wi-Fi Ethernet module
  • TMC2660 stepper drivers with the possibility of 256 microsteps and 2.8A motor current
  • Fast SD card reader with support for a second SD
  • Dual extrusion on board and the option to connect 5 external step drivers
  • Powerful heated bed connection (18A)
  • Direct connection via Wi-Fi to PC, tablet or smartphone
  • Firmware update possible via web interface
  • All 3D printers are supported (Delta, Core XY, standard cartesian)
  • Connections for PanelDue full colour LCD touchscreen
  • Expandable up to 7 extruders with firmware support for mixing nozzle systems.
  • 3 Thermistor connections
  • 5 Endstop inputs
  • LCD connection
  • SD card onboard
  • SD card external
  • 5 Mosfets
The board comes with an SD card and separate molex connectors.

NOTE: The Wi-Fi module of the Duet Wi-Fi is not compatible with 5GHz Wi-Fi networks. The module can only connect to 2.4GHz Wi-Fi networks.

Please note we do not offer support on the installation of this product.
Specifications
Tunnel code: n/a Brand: Duet 3D
Dimensions: 128 x 100 mm Hazard class: n/a
Input voltage: 12-24V Our item no: DUE00000
No of thermistors: 3
Duet Wifi layout
