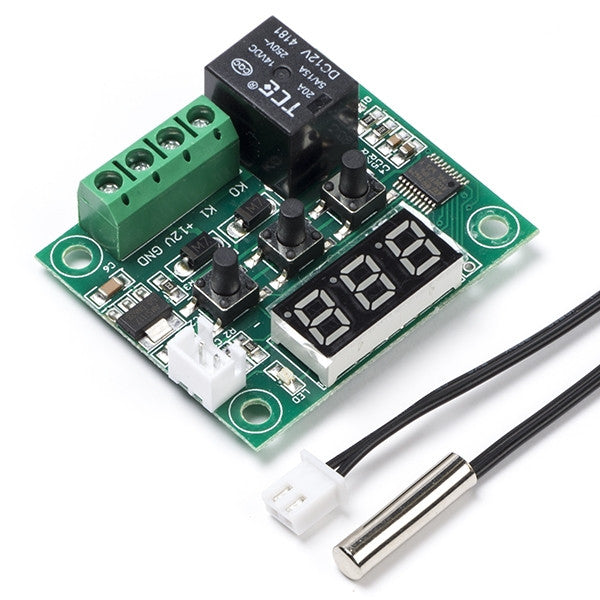

W1209 Thermostat with sensor 12V, 10A

This thermostat plate is ideal for controlling a standalone heated bed. The board comes with a 10K thermistor and has a temperature range of -50°C to 110°C.

A long press on the Set button takes you to the menu of the thermostat. Below are the options of the menu:


Code	Description	Range	Factory setting
P0	heating / cooling	C / H	C
P1	hysteresis	0.1 - 15	2
P2	max temperature	110	110
P3	min. temperature	-50	-50
P4	temperature correction	-7 ~ +7	0
P5	start delay	0-10 min	0
P6	high temperature alarm	0 - 110	OFF

You can load the factory settings by long pressing the + and - key.
