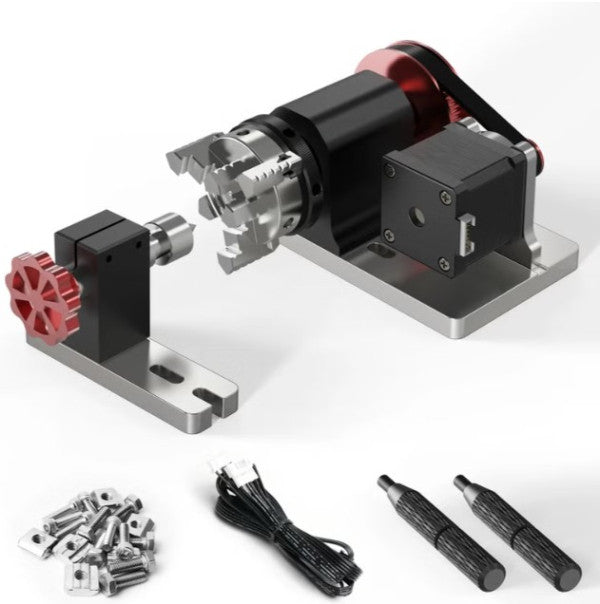

Two Trees CNC Rotary Module Kit - TTC450 (Pro)

This is a four-axis CNC rotary module for Two Trees TTC450 CNC milling machine. The module offers versatile editing options, and three-dimensional masterpieces and takes craftsmanship to a whole new level!

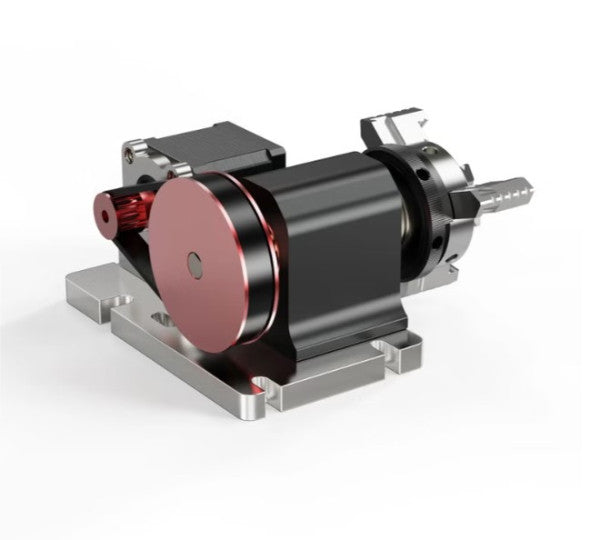

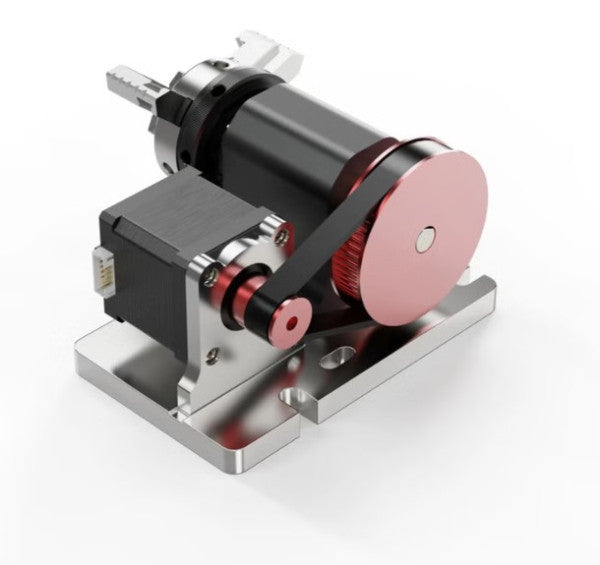

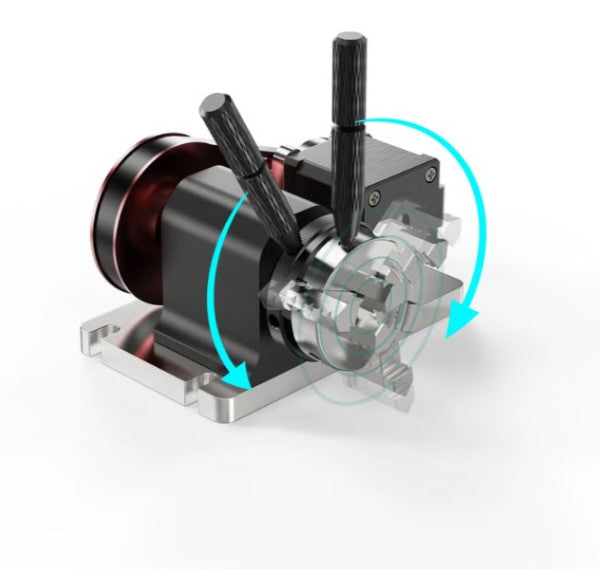

The robust rotation module is manufactured to a high quality and is specially coated to ensure better rust resistance and a longer service life. The module has a stable 3-jaw chuck for better concentricity and clamping force.

Ideal for three-dimensional machining of cylinders, curved tubes and circles. When the TTC450 milling machine is equipped with the fourth axis, it can be used for carving spirals, notches, bamboo joints, etc.

Features:

• Max. clamping diameter for round cylinders: 60 mm
• Min. clamping diameter for round cylinders: 4 mm

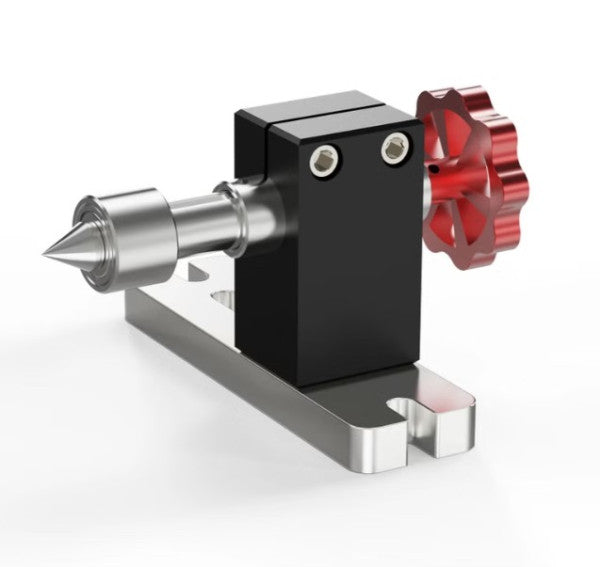

• Max. clamping length for round cylinders: depends on the working length of the machine ⇒ note that the distance occupied by the kit for the chuck and the upper pin must be subtracted!
• Min. clamping length for round cylinders: depending on the tool head of the machine
• Feed reduction ratio: 4:1
• Tip height: 50 mm
• Total height: 76.5mm
