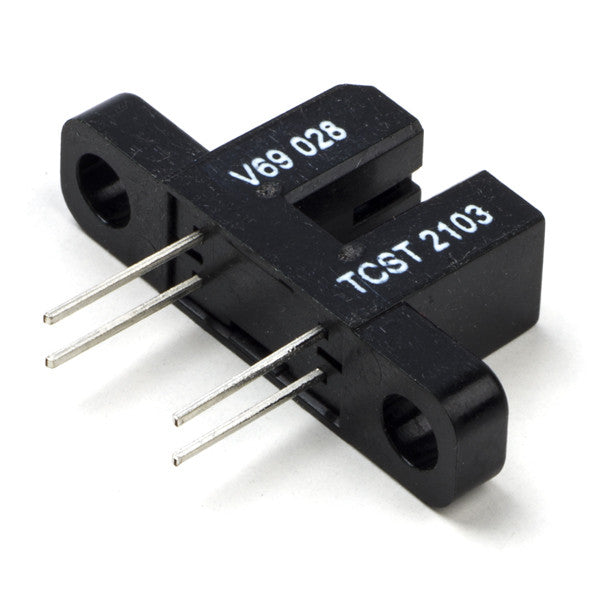

TCST2103 Opto end stop (through hole)

This TCST2103 Opto endstop is a transmissive sensor. It contains an infrared emitter and a phototransistor, which are placed opposite each other on the optical axis. The lead package blocks visible light. You use the TCST2103 to build your own opto endstop.

Properties

• Function: photo interrupter
• Maximum collector current: 100mA
• Maximum collector transmit voltage: 70V
• Maximum current throughput: 20%
• Max forward current: 60mA
• Maximum operating temperature: 85°C
• Maximum power distribution: 250mW
• Max reverse voltage: 6V
• Minimum operating temperature: -55°C
• Fixing: bore
• Number of channels per chip: 1
• Peak Wavelength: 950nm
• Number of pins: 4
