123-3D

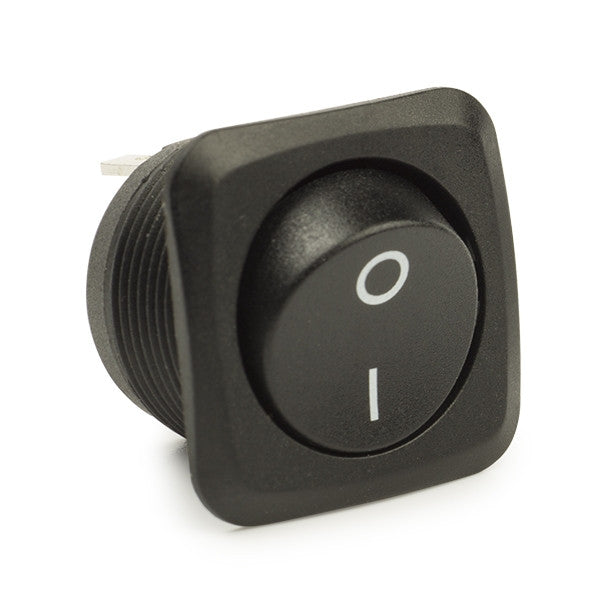

SPST switch for panel mounting, 5A 250V

£3.90
In stock | Same-day dispatch before 4:30pm Monday-Friday | Next-day delivery available

  • Visa
  • Mastercard
  • Apple Pay
  • Google Pay
  • PayPal
  • Shop Pay
This standard on/off switch is easy to mount in a panel or 3D printed object.
  • Type: ON OFF SPST
  • Cover cap: black
  • Electrical life: 10,000 cycles at max. load
  • Mechanical life: 50,000 cycles
  • Contact resistance: < 20 ohm
  • Insulation resistance: 1000 Mohm
  • Dielectric Strength:
    • > 1500V: 1 minute
    • > 3000V: between poles
  • Working temperature: -30°C to +85°C
  • Materials:
    • Housing: 66 Nylon (UL94V-2)
    • Tumbler: 66 Nylon (UL94V-2)
    • Movable Contacts: silver plated brass
    • Static contacts: silver plated brass
    • Connections: silver plated brass
    • Contact: equipped with a spring

Product Specifications

Brand 123-3D
Current Rating 5 A
Hole Diameter 20 mm
SKU DSW00000
Voltage Rating 250 V
