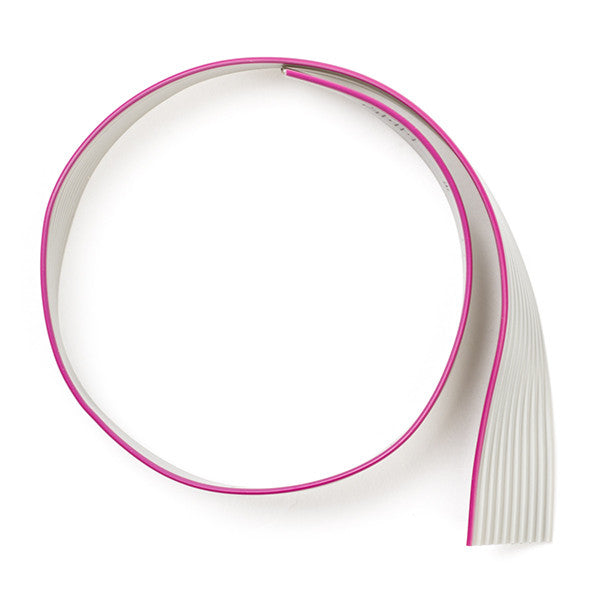

Ribbon cable 10-way grey
£1.75
Unit price
Ribbon cable 10-way grey - 25 cm is backordered and will ship as soon as it is back in stock.
This piece of ribbon cable (grey) with 10 conductors is suitable for making your own ribbon cable. Ribbon cable can be used to add various components (including an LCD or an SD card reader) to your 3D printer.
Note: this ribbon cable is 25cm. Other sizes are also available.
Note: this ribbon cable is 25cm. Other sizes are also available.
Ribbon cable 10-way grey
From
£1.75
Unit price
Ribbon cable 10-way grey - 25 cm is backordered and will ship as soon as it is back in stock.
Product Specifications
| AWG | 28 AWG |
| Brand | 123-3D |
| Cable Capacitance | 14.9 pF/ft |
| Cable Shape | Flat |
| Characteristic Impedance | 105 Ω |
| Colour Group | 3.0 |
| Colour | Grey |
| Conductor Strand Type | Stranded |
| Max Operating Temp | 105 °C |
| Min Operating Temp | 20 °C |
| No Of Ways | 10.0 |
| Pin Pitch | 1.27 mm |
| Screening | Unshielded |
| Size Of Strands | 0.13 mm |
| SKU | DDK00087 |
| Voltage Rating | 300 V |
| Width | 12.7 mm |
