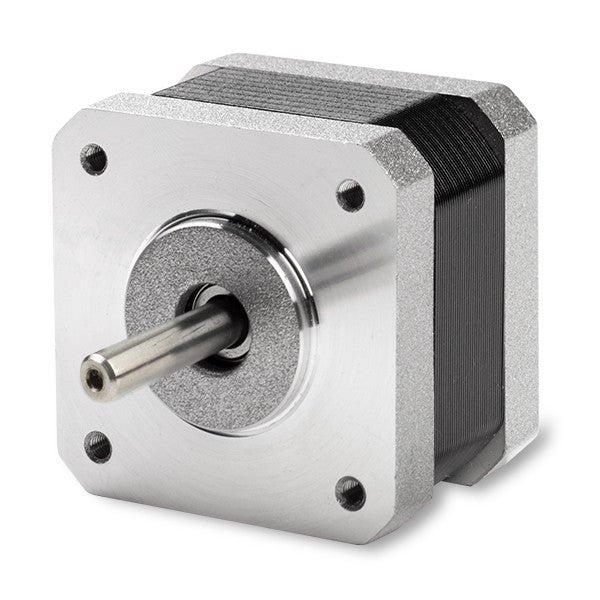

NEMA17 stepper motor 0.9 degrees per step, 34mm long, 2.1kg/cm
£8.60
Unit price
NEMA17 stepper motor 0.9 degrees per step, 34mm long, 2.1kg/cm is backordered and will ship as soon as it is back in stock.
This high resolution stepper motor with D axis is suitable for most RepRap 3D printers. By double the number of steps per revolution ( 400 steps ), this stepper motor increases the precision of your 3D printer. The stepper motor is equipped with a connector and can be easily connected with a stepper motor cable
The following colours are used for the wiring:
We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
The following colours are used for the wiring:
| a | + | = | Black |
| a | - | = | Green |
| B | + | = | Red |
| B | - | = | Blue |
We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
NEMA17 stepper motor 0.9 degrees per step, 34mm long, 2.1kg/cm
£8.60
Unit price
NEMA17 stepper motor 0.9 degrees per step, 34mm long, 2.1kg/cm is backordered and will ship as soon as it is back in stock.
Product Specifications
| AWG | 24 AWG |
| Brand | 123-3D |
| Current Rating | 1.2 A |
| Dimensions | 42.3 x 42.3 x 34 mm |
| Holding Torque | 2.1 kg-cm |
| No Of Leads | 4.0 |
| Screwthread Type | M3 |
| Shaft | 5 mm |
| SKU | DMO00053 |
| Stepper Shaft Length | 24 mm |
| Stepper Type | SL42S234MA107 |
| Stepping Angle | 0.9° |
| Voltage | 2.04 V |
