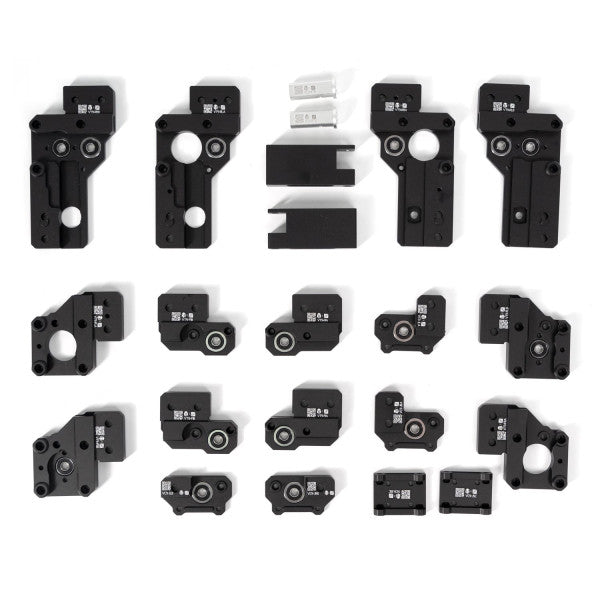

LDO Monolith CNC Gantry KIT Voron Trident

The Monolith Gantry is a performance-oriented, configurable gantry platform for Voron Trident. LDO made a high-quality kit with CNC parts for it, which includes everything but the stepper motors and the 9mm belt.

Technical data:

• Drive configuration of the kit: 2WD and AWD
• Belt width: 9mm
• Material: CNC machined aluminium

Features

• Metal Monolith in an easy-to-assemble, package
• 2WD and AWD options in one kit to provide a convenient upgrade path
• Everything included except belts and steppers
• Robust, removable tensioners for easier belting up and pre-tensioning
• 9/10mm belt support (toolhead dependent)
• Genuine Gates pulleys and press-fit live shaft idlers
• AWD front extrusion support for tool-changers

Performance expectations

• AWD: It doesn’t come at the cost of adding 20cm belt length and idlers, so input shaper scaling can be close to +100% compared to 2WD due to the truly halved effective belt length. But only when no toolhead or frame bottlenecks are limiting its scaling.
• 9mm belts: Wider belts can offer an additional 50% input shaper scaling on top of what’s described above.
