eufyMake E1 Exhaust Fan Kit

eufyMake E1 Exhaust Fan Kit

Improve ventilation in your printing workspace with the eufyMake E1 Exhaust Fan Kit. Designed for the E1 UV printer, this external extraction system draws air from the printing area and vents it outdoors through a flexible hose, helping manage printing odours in studios and workshops.

Key Features

• Three Fan Modes: Choose Silent, Standard or Strong mode to suit your printing requirements.
• Effective Extraction: Provides external ventilation for the E1, including open-format printing with the standard bed or roll-to-film attachment.
• Flexible Installation: Suitable for desktop placement or wall mounting using the supplied brackets.
• Flexible Exhaust Hoses: Includes 1 m and 3 m hoses to accommodate different workspace layouts.
• Simple Controls: Adjust power and fan speed using the single-button control.

Technical Specifications

• Model: T520Q
• Rated Power: 48 W
• Fan Speed: 4,300 RPM (manufacturer-listed)
• Air Pressure: 480 Pa (manufacturer-listed)
• Noise Level: As low as 40 dB in Silent mode
• Dimensions: 215 × 180 × 198 mm
• Weight: 1.45 kg
• Hose Diameter: 50.8 mm / 2 inches
• Installation: Desktop or wall-mounted
• Venting: Requires a suitable outdoor exhaust outlet

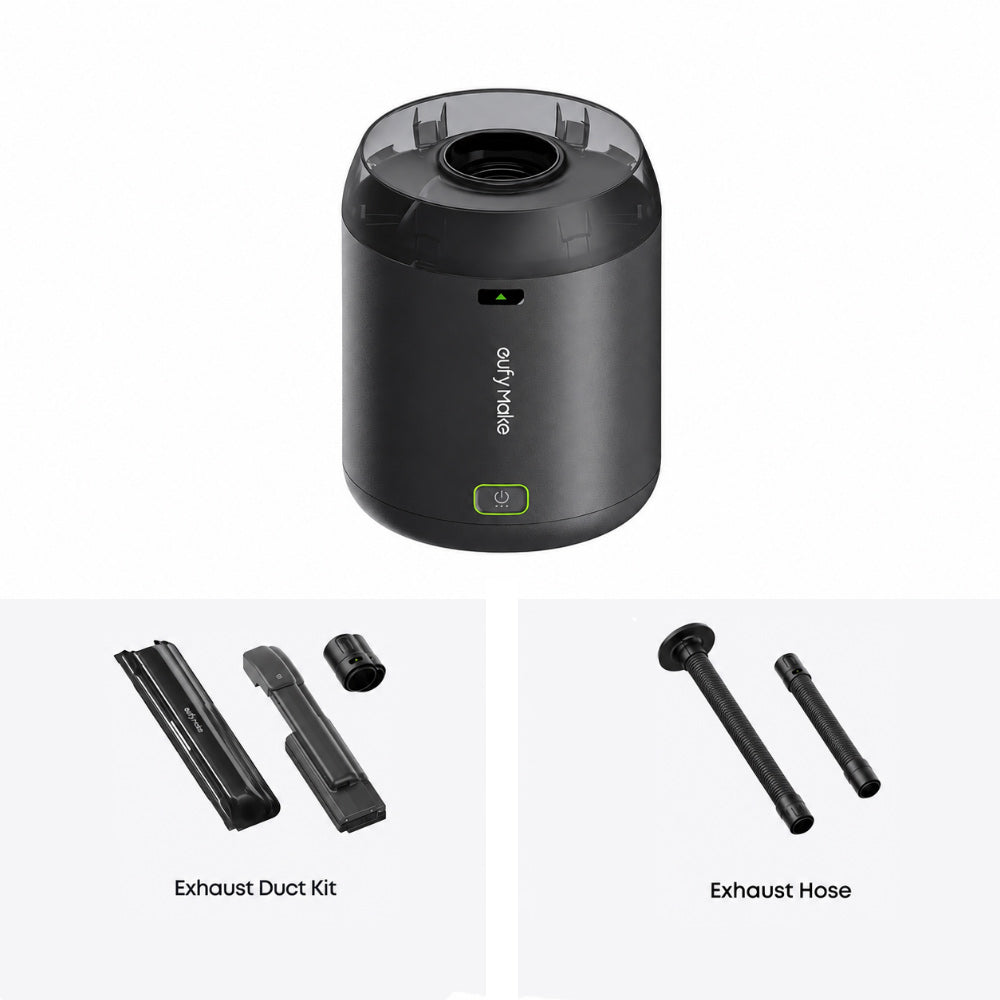

What’s Included

• eufyMake exhaust fan
• Power adapter
• Printer exhaust duct and cover
• 1 m exhaust hose with connector
• 3 m exhaust hose with connector and window adapter
• Wall-mount kit with brackets, screws and hex key
• Quick Start Guide

Important: This kit extracts air outdoors rather than filtering and recirculating it indoors. Ensure you have a suitable exhaust outlet and keep the hoses, fan and filter screen clean for effective airflow. The eufyMake E1 printer is sold separately.
