E3D Titan Aero 3mm, 12V

With the Titan Aero you have access to the ultimate extruder system for your 3D printer. It is the perfect combination of a V6 hotend and a Titan cold end. Both are developed for a unique performance.

The Aero is a lightweight and compact extruder system. For example, it takes up 25mm less space than a separate V6 and Titan combination. Because everything is more compact, the extruder can also handle flexible filaments better.

Due to the 3:1 transmission, a lighter NEMA17 stepper motor can be used. This makes the Aero powerful, precise and yet very fast.

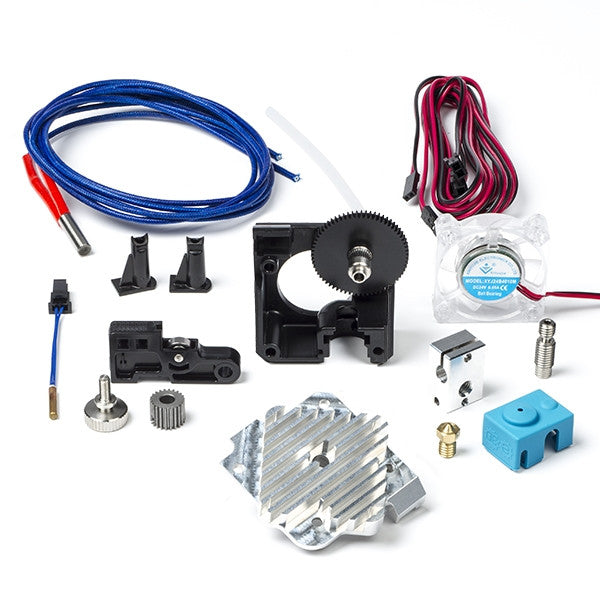

The Titan Aero 12V extruder kit contains the following parts:

• Titan Aero Heatsink (for 3mm heatbreak)
• E3D V6 Heatbreak
• E3D V6 Heater block
• E3D V6 Nozzle 0.4mm
• Titan housing and plastic parts
• Large sprocket (plastic) with drivegear (metal)
• Small gear (metal)
• 40mm x 40mm x 10mm fan (12V)
• Ceramic heating cartridge (12V)
• E3D thermistor cartridge 100k Ohm Semitec
• PTFE tube 4 x 2mm, 10cm
• Thermal paste 1 gram
• 2x connection cable
• Fasteners

The Titan Aero is supplied without a stepper motor.
