Creality 3D Pika 3D Scanner

The Creality Pika 3D Scanner combines precision, versatility, and portability in a compact design, making it an excellent choice for hobbyists, makers, and professionals. Featuring advanced 7-line blue laser technology alongside infrared structured light, the Pika can capture intricate details on small objects while efficiently scanning larger items.

Weighing just 260 grams, the Pika is designed for scanning on the go. Its replaceable 3,350 mAh battery, built-in 3-inch touchscreen, and wireless connectivity offer greater freedom to work in the workshop, studio, or out in the field. With support for objects ranging from approximately 10 mm to 2,000 mm, this versatile scanner is suitable for a wide range of applications, including reverse engineering, quality control, product development, and the digitisation of art and other objects.

Compact Design for Mobile Scanning

Weighing only 260 grams, the Creality Pika is lightweight, compact, and easy to transport. The replaceable 3,350 mAh battery allows you to scan without relying on a constant power supply, making it ideal for mobile workflows and on-location projects.

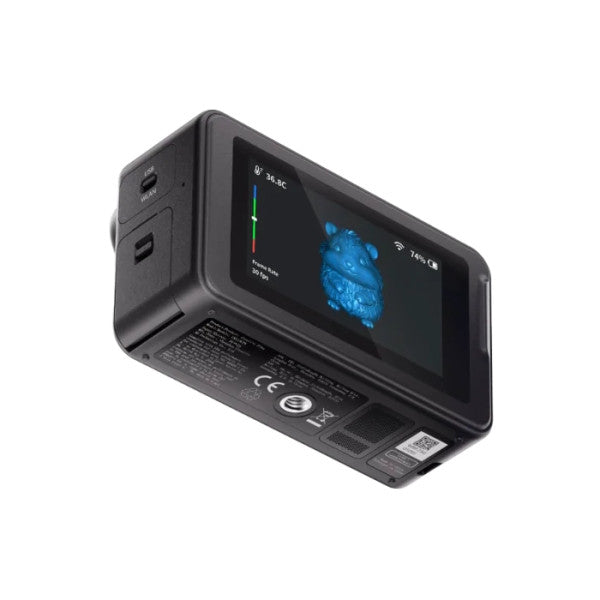

The integrated 3-inch touchscreen lets you start and manage scans directly on the device, while wireless connectivity provides added flexibility. Although scanning can be controlled on the scanner itself, data processing takes place on a connected PC or smartphone.

Two Scanning Technologies for Optimal Results

The Creality Pika combines 7-line blue laser technology and infrared structured light to accommodate different objects, levels of detail, and scanning requirements.

• 7-line blue laser: Designed for high-precision scanning of smaller objects and fine details, making it suitable for capturing intricate features and complex geometries.

• Infrared structured light: Ideal for scanning larger objects and capturing 3D data efficiently, offering a practical solution for objects that require broader coverage.

By combining these two technologies in one device, the Pika offers the flexibility to handle a wide variety of scanning tasks without requiring separate equipment.

Suitable for a Wide Range of Object Sizes

The Pika supports objects ranging from approximately 10 mm to 2,000 mm, making it suitable for everything from small components to larger products.

Depending on the selected scanning mode, the working distance varies:

• Blue laser mode: A working distance of 160–400 mm, optimised for high-precision scanning and fine detail capture.

• Infrared mode: A working distance of 200–1,000 mm, allowing larger objects to be scanned efficiently from a greater distance.

This flexibility makes the Creality Pika suitable for a broad range of applications, from detailed component inspection to capturing the geometry of larger objects.

Key Features

• Dual scanning technology: Combines 7-line blue laser and infrared structured light for versatile 3D scanning.

• High portability: Compact design and a weight of just 260 grams make it easy to carry.

• Replaceable battery: Built-in 3,350 mAh battery supports mobile scanning without a constant power supply.

• Integrated touchscreen: Start and manage scans directly via the 3-inch display.

• Wireless connectivity: Offers greater flexibility when working away from a fixed workstation.

• Wide scanning range: Suitable for objects measuring approximately 10–2,000 mm.

• Flexible working distances: Blue laser mode operates at 160–400 mm, while infrared mode operates at 200–1,000 mm.

• Versatile applications: Ideal for reverse engineering, quality control, product development, and the digitisation of art and other objects.

A Versatile 3D Scanning Solution

Whether you need to capture fine details on small components or digitise larger objects, the Creality Pika 3D Scanner offers a versatile combination of precision, portability, and ease of use. Its dual scanning technologies, wireless operation, and compact design make it a practical solution for professionals and enthusiasts looking to integrate 3D scanning into their workflow.
