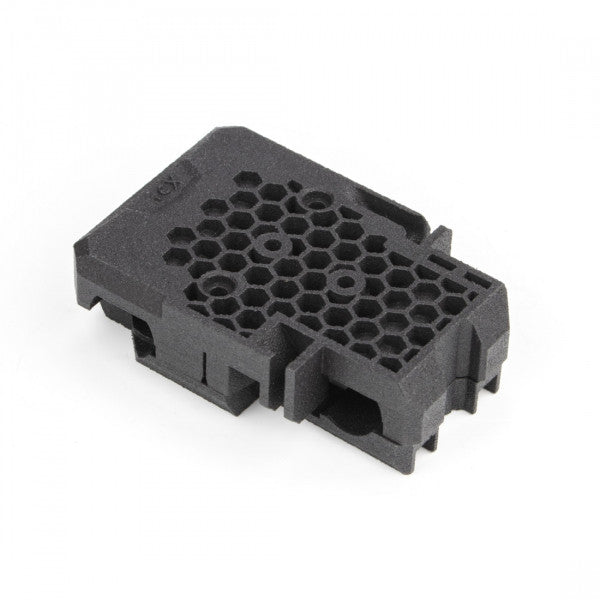

Bondtech LGX Shortcut X-carriage

You need this Bondtech LGX Shortcut X carriage to install the "Bondtech LGX Shortcut Copperhead for Prusa MK3S" and "Bondtech LGX Shortcut Mosquito for Prusa MK3S" upgrade kits. The X-carriage reduces the distance between the nozzle and the x-axis.

This part is professionally 3D printed with nylon for maximum strength, precision and higher temperature resistance. The operating temperature limit for the stepper motor is max. 70°C and the maximum operating temperature is 90°C. The X-carriage itself can withstand temperatures up to 100°C. For durability, this part is supplied unpainted. It has the natural colour of the material and a wax coating.

The LGX Shortcut X-carriage for MK3S(+) comes with:

• SLS X-carriage front
• SLS X-carriage rear
• 5 x M3 x 10 screws
• 5 x M3 square nut
• 1 x M3 nut
• 2 x 100mm black cable ties
