Arduino Mega 2560 clone (123-3D version)

£23.25
In stock | Same-day dispatch before 4:30pm Monday-Friday | Next-day delivery available

  • Visa
  • Mastercard
  • Apple Pay
  • Google Pay
  • PayPal
  • Shop Pay

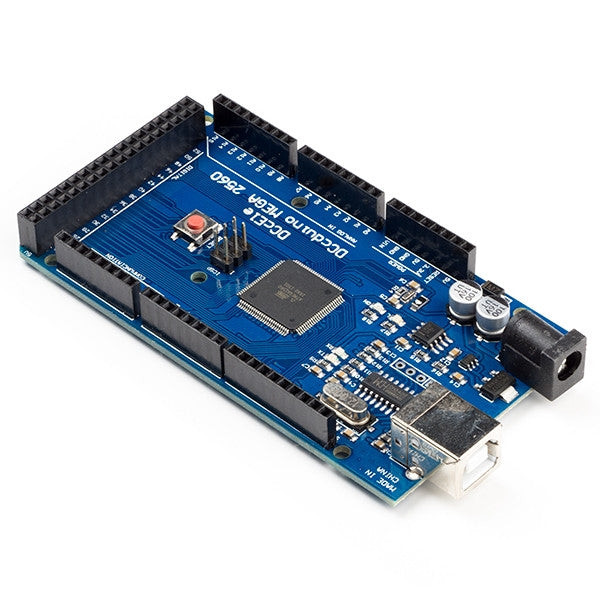

The Arduino MEGA2560 clone is a microcontroller board, based on the ATmega2560. This board has:
  • 54 x Digital input/output pins (of which 14 are suitable for PWM outputs)
  • 16 x Analogue inputs, 4 UARTs (hardware serial ports)
  • 16MHz crystal oscillator
  • Flash Memory 256KB (8KB already in use by the bootloader)
  • USB connection
  • Power jack
  • ICSP header
  • Reset button
The microcontroller board can be connected via USB, an AC-DC adapter or a battery. This board is compatible with most shields designed for the Arduino, Mega Duemilanove or Diecim. The Arduino Atmega 2560 clone features a CH340G USB-to-Serial chip.

Please note we do not offer support on the installation of this product.

Product Specifications

Brand 123-3D
Dc Current For 3 3v Pin 50 mA
Dc Current Per I O Pin 40 mA
EEPROM 4 KB
Flash Memory 256 KB
Input Voltage Limits 7-12 V (limits)
Input Voltage 7-12 V (recommended)
Operating Volt Logic Logic 5 V
Processor ATmega2560
SKU DRW00007
SRAM 8 KB
