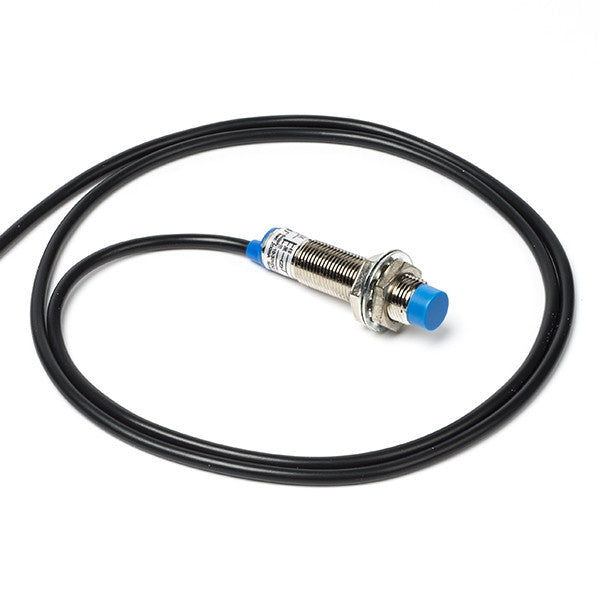

M12 LJ12A3-4-Z/BX Inductive distance sensor, 4mm
£7.25
Unit price
M12 LJ12A3-4-Z/BX Inductive distance sensor, 4mm is backordered and will ship as soon as it is back in stock.
Easily add an automatic bed levelling system to your 3D printer with this inductive distance sensor. The sensor triggers on metal objects and has a theoretical measuring distance of 4mm. The diameter of the sensor is 12mm.
The sensor operates on 6V-36V DC, is an NPN variant/NO and has an internal pull-up resistor which makes it necessary to add a series resistor to the signal connection.
Wire colours:
Brown: +V (12V)
Black: Output (to series resistor 10k)
Blue: 0V (gnd)
The sensor operates on 6V-36V DC, is an NPN variant/NO and has an internal pull-up resistor which makes it necessary to add a series resistor to the signal connection.
Wire colours:
Brown: +V (12V)
Black: Output (to series resistor 10k)
Blue: 0V (gnd)
M12 LJ12A3-4-Z/BX Inductive distance sensor, 4mm
£7.25
Unit price
M12 LJ12A3-4-Z/BX Inductive distance sensor, 4mm is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | 123-3D |
| Diameter | 12 mm |
| Input Voltage | 6-36 V |
| Max Current | 0.3 A |
| Screwthread Type | M12 |
| SKU | DEL00006 |
