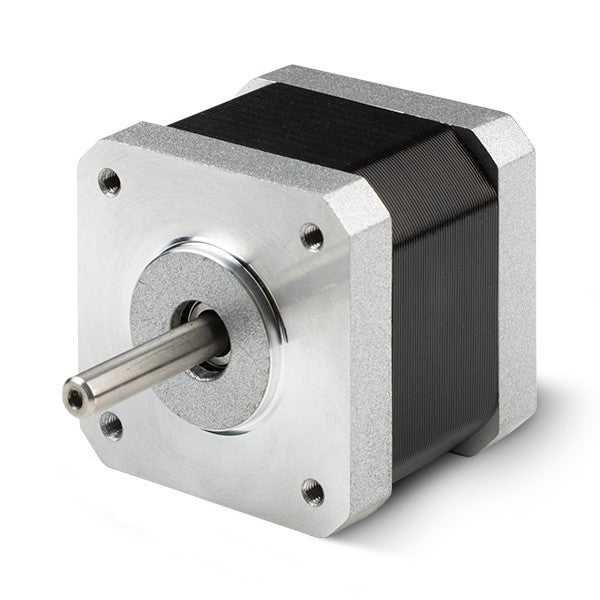

NEMA17 stepper motor 0.9 degrees per step, 48mm long (4.2kg/cm)
£13.50
Unit price
NEMA17 stepper motor 0.9 degrees per step, 48mm long (4.2kg/cm) is backordered and will ship as soon as it is back in stock.
This high-resolution stepper motor is suitable for most RepRap 3D printers. By double the number of steps per revolution (400 steps), this stepper motor increases the precision of your 3D printer. The stepper motor is equipped with a connector and can be easily connected with a stepper motor cable
The following colours are used for the wiring:
We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
The following colours are used for the wiring:
| a | + | = | Black |
| a | - | = | Green |
| B | + | = | Red |
| B | - | = | Blue |
We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
NEMA17 stepper motor 0.9 degrees per step, 48mm long (4.2kg/cm)
£13.50
Unit price
NEMA17 stepper motor 0.9 degrees per step, 48mm long (4.2kg/cm) is backordered and will ship as soon as it is back in stock.
Product Specifications
| AWG | 24 AWG |
| Brand | 123-3D |
| Current Rating | 1.7 A |
| Dimensions | 42.3 x 42.3 x 48 mm |
| Holding Torque | 4.2 kg-cm |
| Mounting Hole | M3 hole |
| No Of Leads | 4.0 |
| Resistance | 1.8 Ω |
| Shaft | 5 mm |
| SKU | DMO00050 |
| Stepper Shaft Length | 22 mm |
| Stepping Angle | 0.9° |
| Voltage | 3.1 V |
