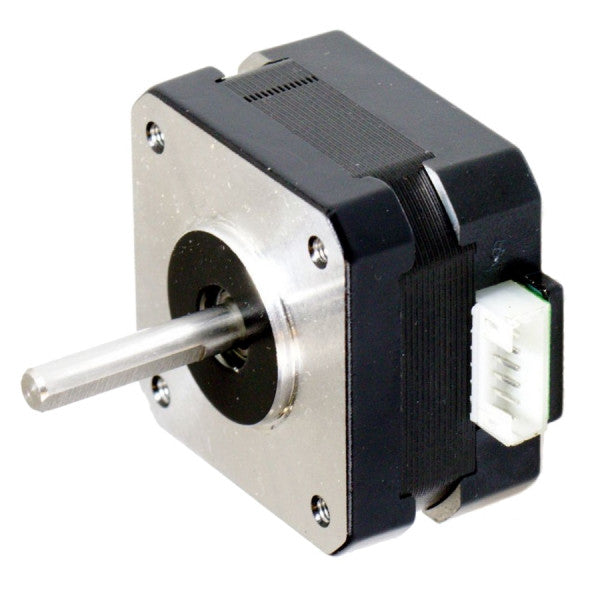

NEMA17 stepper motor 0.9 degrees per step, 27mm long, 1.33kg/cm
£12.75
Unit price
NEMA17 stepper motor 0.9 degrees per step, 27mm long, 1.33kg/cm is backordered and will ship as soon as it is back in stock.
This extra short high-resolution stepper motor has no less than 400 steps per revolution. And is therefore extremely suitable for projects where high precision is required.
We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
NB:
The sticker on the motor indicates 1.8 degrees per step. But the motor is 0.9 degrees per step.
We recommend the Stepstick DRV8825 driver or equivalent as the most suitable for this stepper motor.
NB:
The sticker on the motor indicates 1.8 degrees per step. But the motor is 0.9 degrees per step.
NEMA17 stepper motor 0.9 degrees per step, 27mm long, 1.33kg/cm
£12.75
Unit price
NEMA17 stepper motor 0.9 degrees per step, 27mm long, 1.33kg/cm is backordered and will ship as soon as it is back in stock.
Product Specifications
| Brand | 123-3D |
| Current Rating | 1.4 A |
| Dimensions | 42 x 42 x 27 mm |
| Holding Torque | 1.33 kg-cm |
| No Of Leads | 4.0 |
| Resistance | 2 Ω |
| Shaft | 5 mm |
| SKU | DMO00040 |
| Stepper Size | NEMA 17 |
| Stepper Type | SL42S225MA2B |
| Stepping Angle | 0.9° |
| Voltage | 2.8 V |
| Weight | 0.285 |
