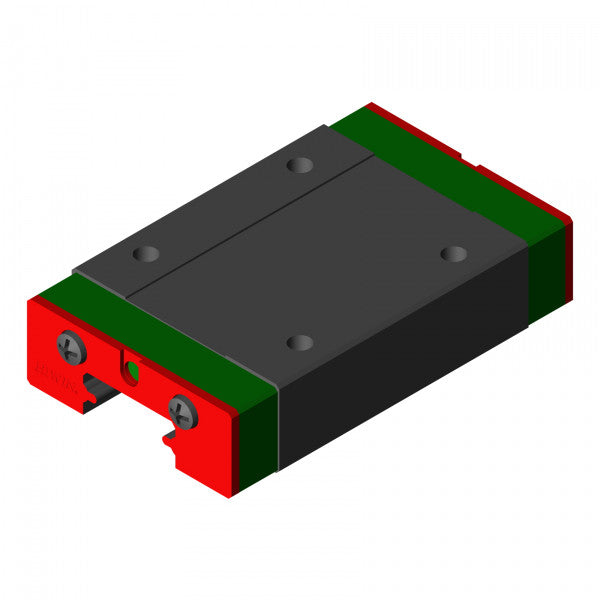

HIWIN MGN12H linear slider block

This HIWIN MGN12H slider block is suitable for the MGNR12R Profile Rail Guide rails.

MGN12H Dimensions

huh

:

13.0

mm

W

:

27.0

mm

C

:

20.0

mm

G N

:

ø 2.0

mm

H 1

:

3.0

mm

B

:

20.0

mm

L 1

:

32.4

mm

M x L

:

M3 x 3.5

mm

N

:

7.5

mm

B 1

:

3.5

mm

l

:

45.4

mm

H 2

:

2.5

mm
