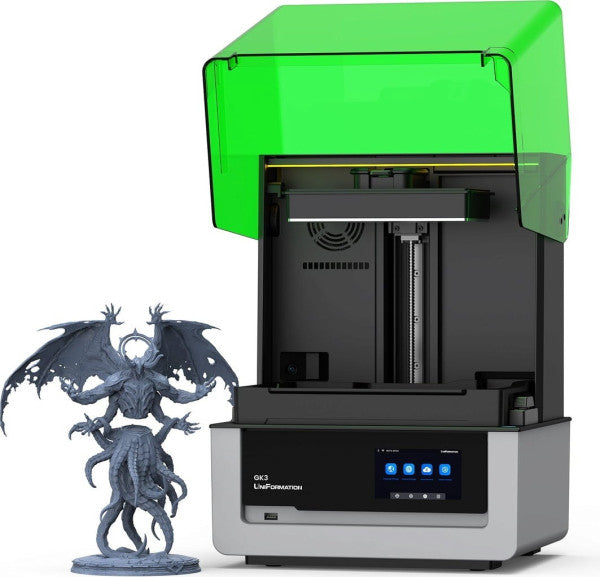

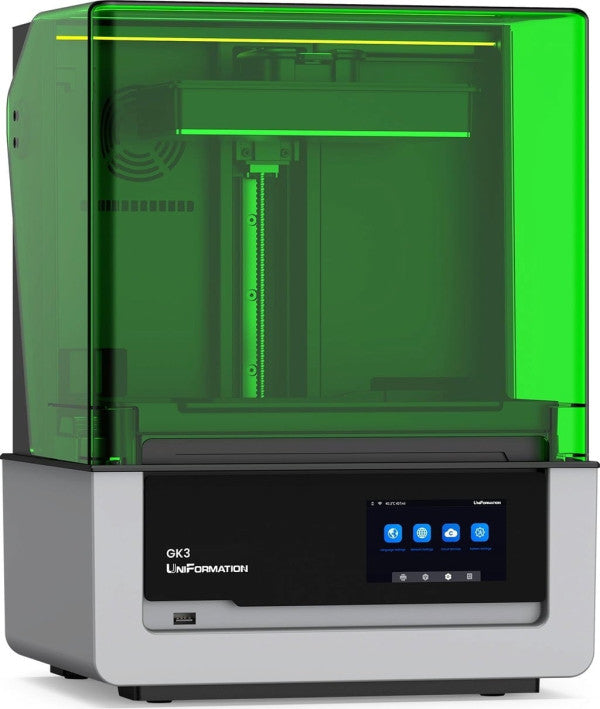

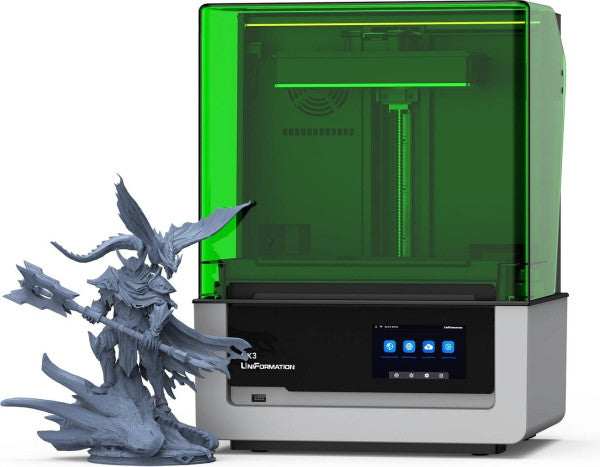

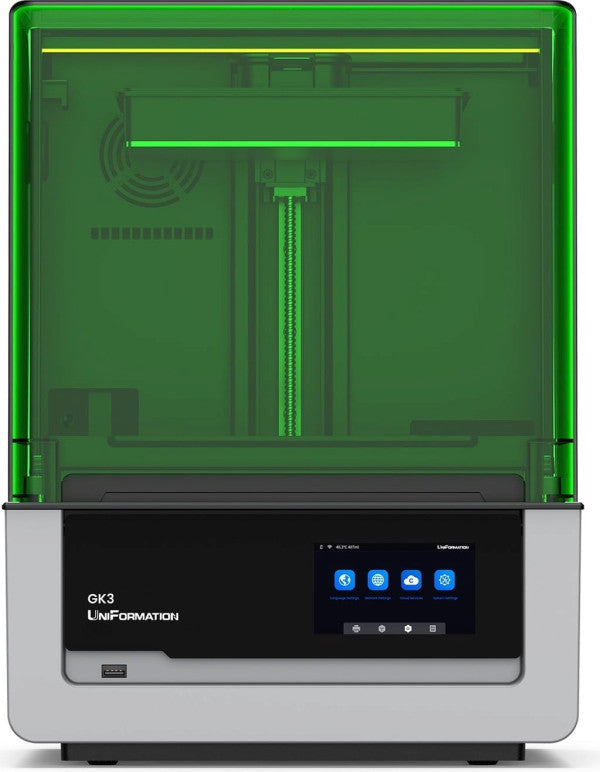

Uniformation GK3 3D Printer

With ground-breaking features and smart technology, the GK3 from UniFormation takes your creative projects to a whole new level. Perfect precision, maximum efficiency and user-friendly operation - high-quality results.

The main difference between the GK3 and GK3 Pro lies in the light source. The GK3 uses a 405 nm UV light source, while the GK3 Pro is equipped with a 385 nm UV light source. The shorter wavelength of the GK3 Pro allows for more precise control when curing the resin, resulting in finer details and higher print accuracy. Furthermore, the GK3 uses an nFEP film and the GK3 Pro uses a CPFA film.

16K display

With a display resolution of 15120 x 6230 pixels and XY resolution of 14 x 19 µm, the 9.6 inch display enables incredibly fine details and an impressive visualisation of your designs.

COB light source & Fresnel collimator lens

The finely calibrated Fresnel lens not only ensures precise light guidance and reduced light scattering, but also guarantees even and powerful light emission (405 nm). The result is a clearly defined, consistent light beam that precisely cures even the smallest details.

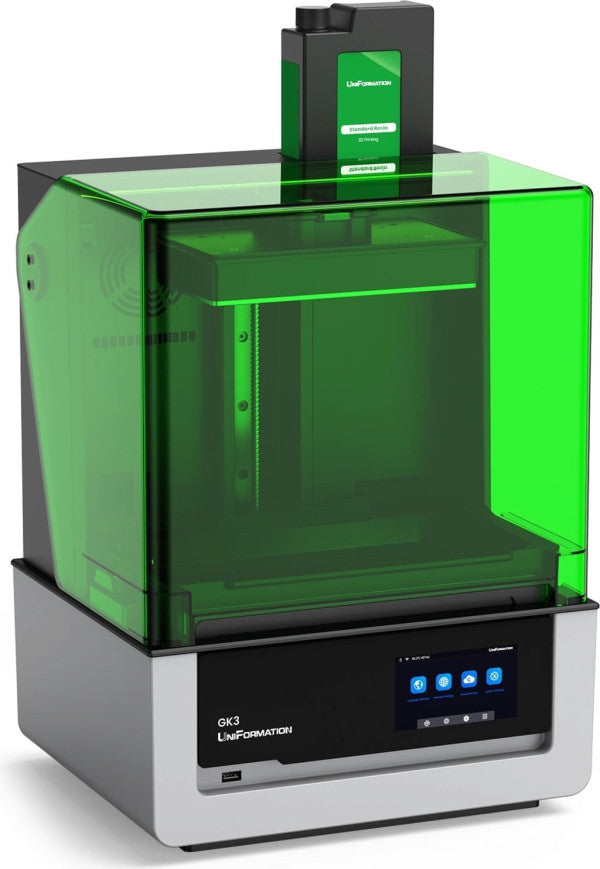

Smart Resin Feeding System

The automatic resin feeding system monitors the fill level and ensures a continuous supply throughout the entire printing process.

Intelligent heating system

The automatic heating system with a preheating function ensures constant temperatures and efficient printing. The printer reaches operating temperatures of 0-25 °C in just 35 minutes.

Integrated camera for smart monitoring

Thanks to the built-in camera, you can always keep an eye on your printing process. Whether it's real-time monitoring or impressive time-lapse recordings.

User-friendly design

• UniFormation Smart App,
• Building platform with quick-release design,
• Resin drip hanger design,
• 90° rotating touch screen.
